Linear Rail
Dobot
DobotSKU: 1100000019

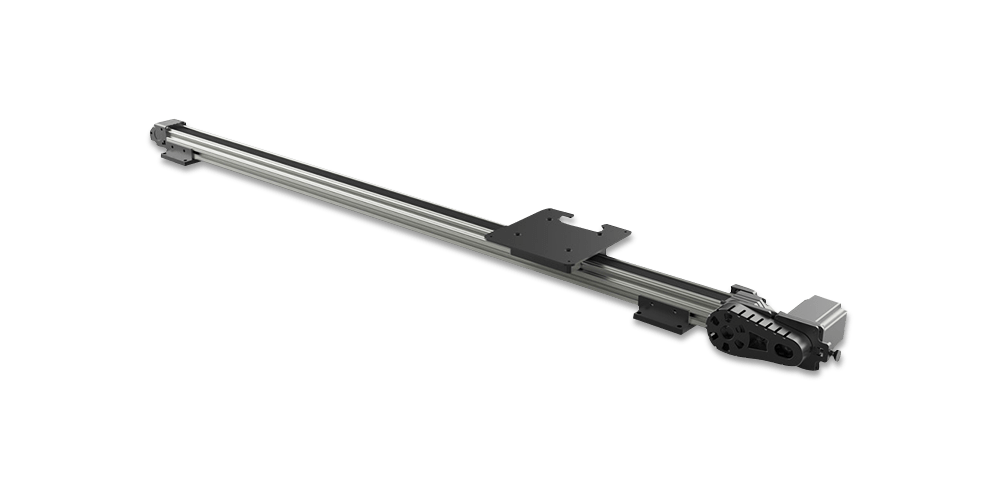

Linear Rail
High-precision CNC-milled steel linear rail with 1000mm travel and exceptional 0.01mm repeatability. Single-piece construction for rigidity. Compatible with Dobot Magician and M1. Extends workspace for long-distance picking, writing, laser engraving.
$1,425
Specifications
| Dimensions | 1320 x 120 x 55 mm |
| Weight | 4.7 kg |
| Travel Distance | 1000 mm |
| Payload | 5 kg |
| Max Speed | 150 mm/s |
| Max Acceleration | 150 mm/s² |
| Repeatability | +/- 0.01 mm |
| Absolute Accuracy | +/- 0.25 mm |
