MG400 Sliding Rail Kit
Dobot
DobotSKU: 1200000033

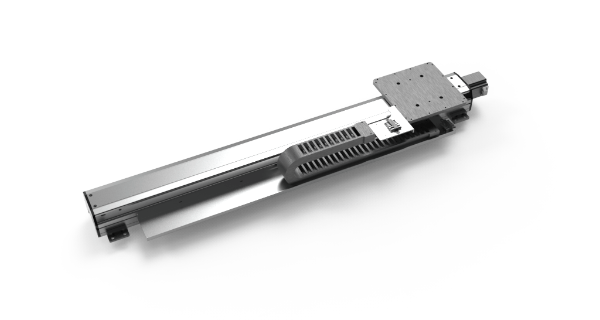

MG400 Sliding Rail Kit
7th axis linear rail for MG400 with 800mm travel, 20kg payload, and 800mm/s speed. Includes servo motor, driver, power/control harnesses, E-stop wiring, DI/DO wiring, network cable, hex screwdriver set, and drag-chain cable carrier. MG400 robot NOT included.
$2,890
Specifications
| Dimensions | 1150 x 230 x 90 mm |
| Weight | 15 kg (41.9 lbs) |
| Travel Distance | 800 mm |
| Payload | 20 kg |
| Max Speed | 800 mm/s |
| Max Acceleration | 1600 mm/s² |
| Repeatability | +/- 0.1 mm |
| Lead Screw Diameter | 20 mm |
| Power Consumption | 200W |
| IP Rating | IP20 |
| Control Interface | Modbus TCP |
