DH AG-95
DH-Robotics
DH-RoboticsSKU: 1200000238

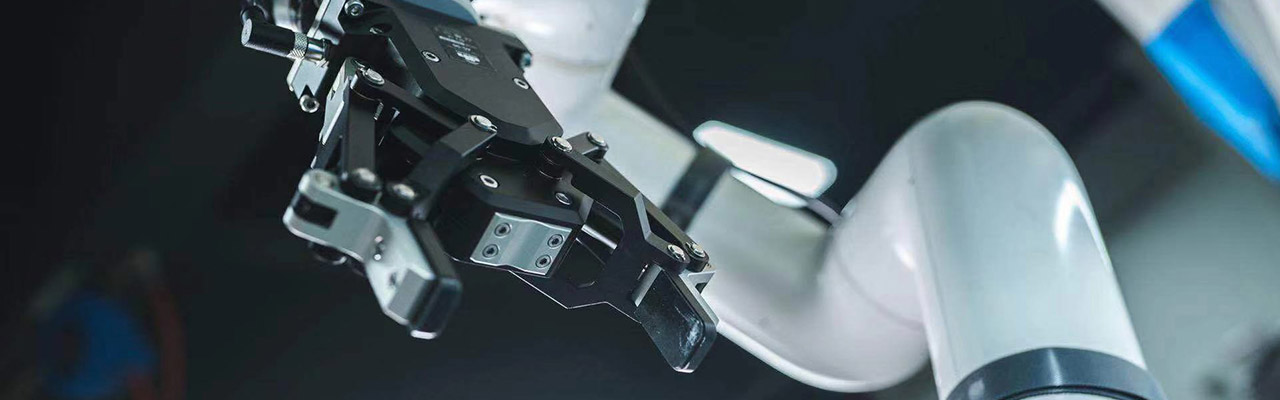

DH AG-95
Industrial adaptive gripper with 160N max force and 95mm stroke. Standard Modbus RTU/Digital I/O with optional TCP/IP, USB, CAN, PROFINET, EtherCAT. ISO 9409-1-50-4-M6 mounting. Compatible with Universal Robots, OMRON TM, Hanwha, DOBOT, ELITE, Han's Robot, AUBO.
$5,350
Specifications
| Grip Force | 45-160N |
| Stroke | 95 mm |
| Weight | 1 kg |
| Payload | 3 kg |
| Open/Close Time | 0.7s each |
| Repeatability | +/- 0.03 mm |
| Power | 24V +/-10%, 0.8A nom, 1.5A max |
| IP Rating | IP54 |
| Operating Temp | 0 to 40°C |
| Noise Level | 50 dBA |
